2 axis, Minijoystick, buttons, hall, J1939
Art-Nr:212-021
SK 212-021
SK 212-021
General characteristics
Joystick base model:SK 212 - The big one
Mechanical characteristics
Number of axes:2
Operating angle:±24°
Cross guidance:soft
Gate:square
Lebensdauer X/Y-Achse [Zyklen]:3 Mio.
Max. actuating torque:750±30 Nmm
Abuse force X,Y-axes:200Nm
Resetting:Integrated return spring
Electrical characteristics
Connector:Deutsch DTM04-4P
Interface:J1939
Sensor technology:hall effect sensors
Supply voltage:5V DC
Qualifications
Operating temperature:-30°C - +70°C
Storage temperature:-40°C - +85°C
REACH compliant:Yes
RoHS compliant:Yes
Protection class front side:IP54 correct mounted
Protection class rear:IP53 korrekt montiert

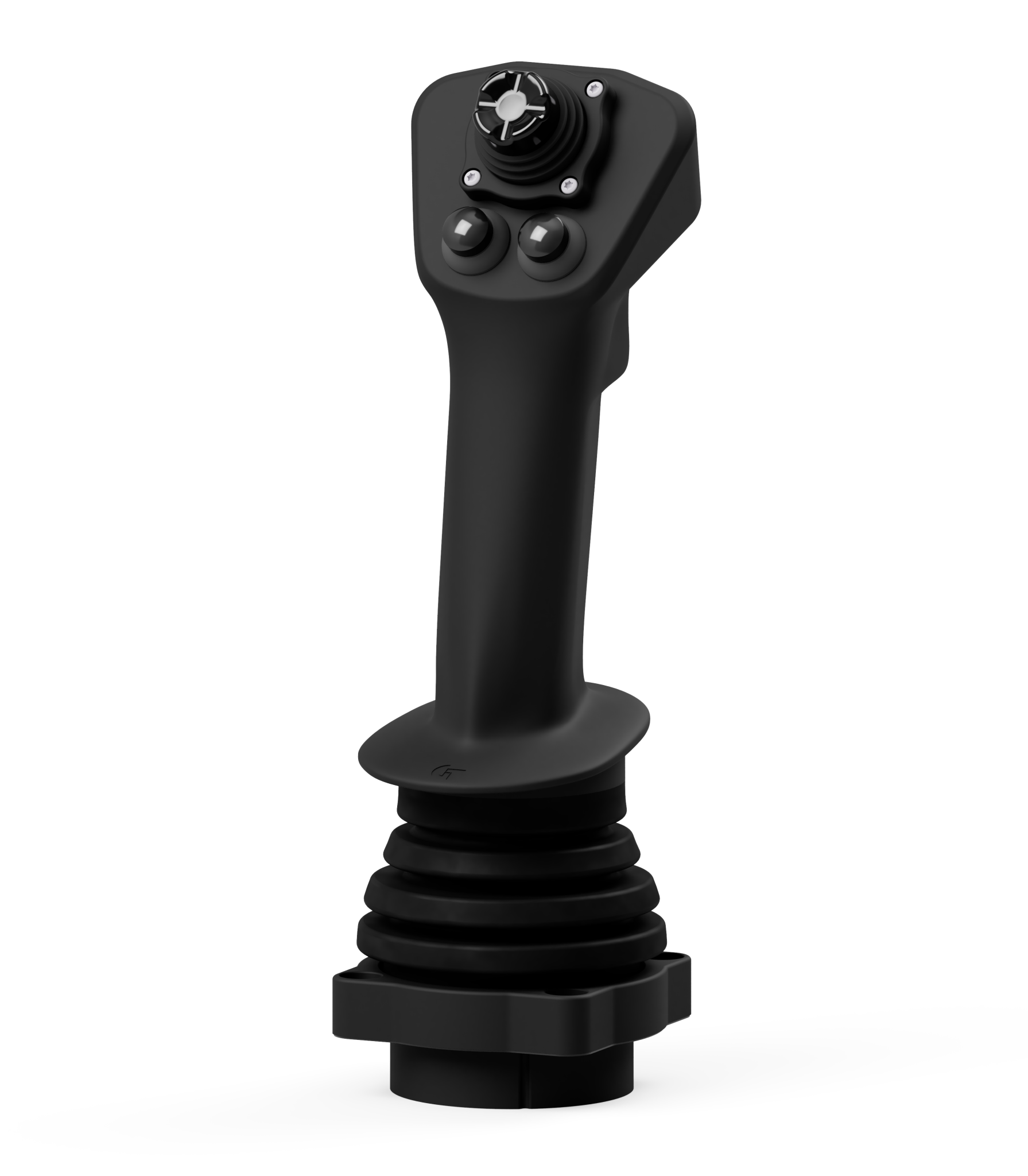

Handle
Extension:Taster (OFF - (mom));Minijoy (XXYY)
Handle model:Multifuncitonal handle
Special functions in handle:Minijoystick 2-achsig
Push buttons in handle:3
Material
Rubber boot:Rubber boot EPDM

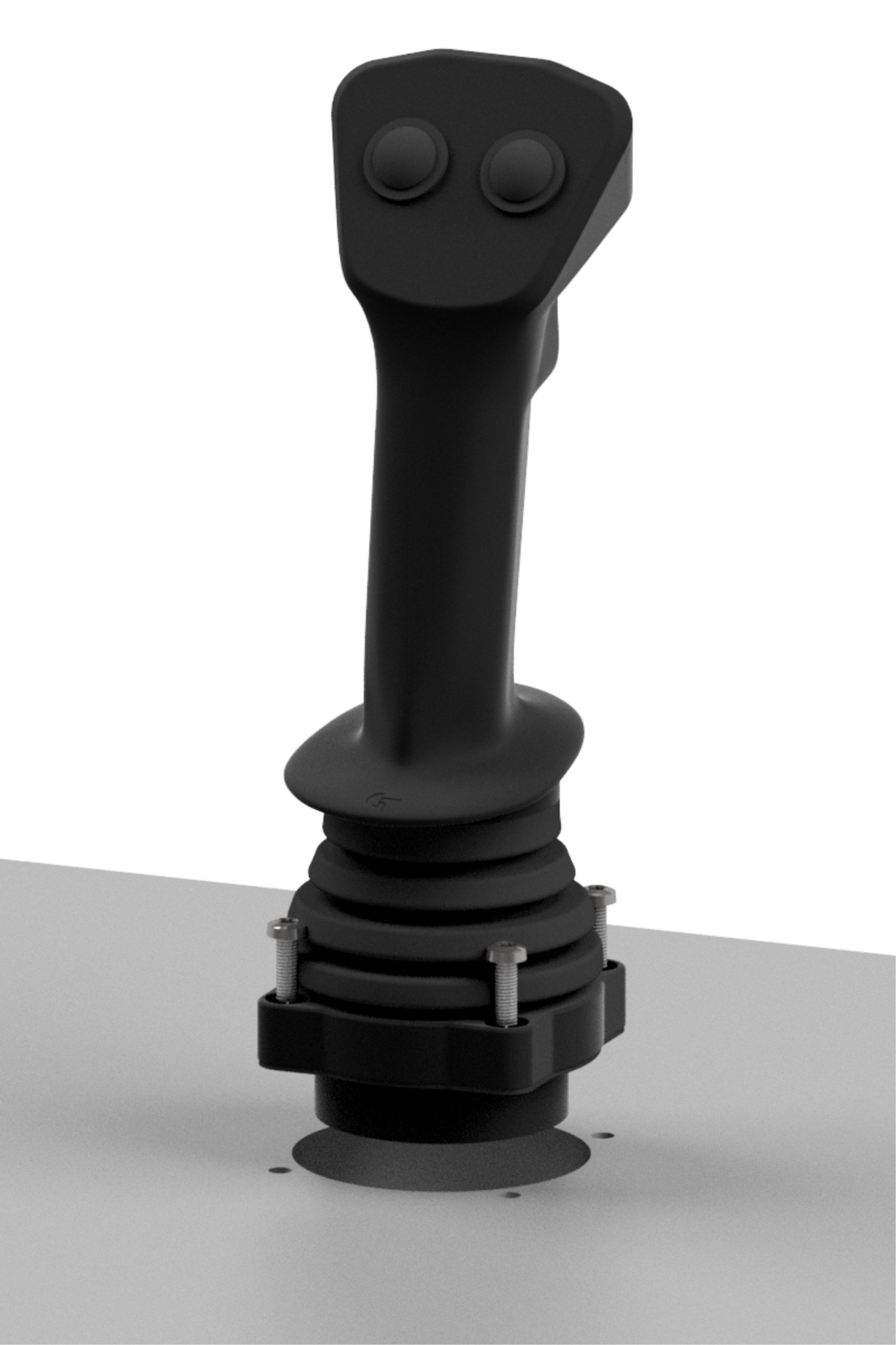

Mounting
Mounting bolts:4xM5
Hole circle for mounting:Ø 59mm
Screw-hole pattern:54 x 54mm
Mounting direction:from top
Dimensions
Outer diameter:Ø 74mm
Installation depth:17mm (~0.67in)
Handle height above the panel:225mm
Cable length:200mm
