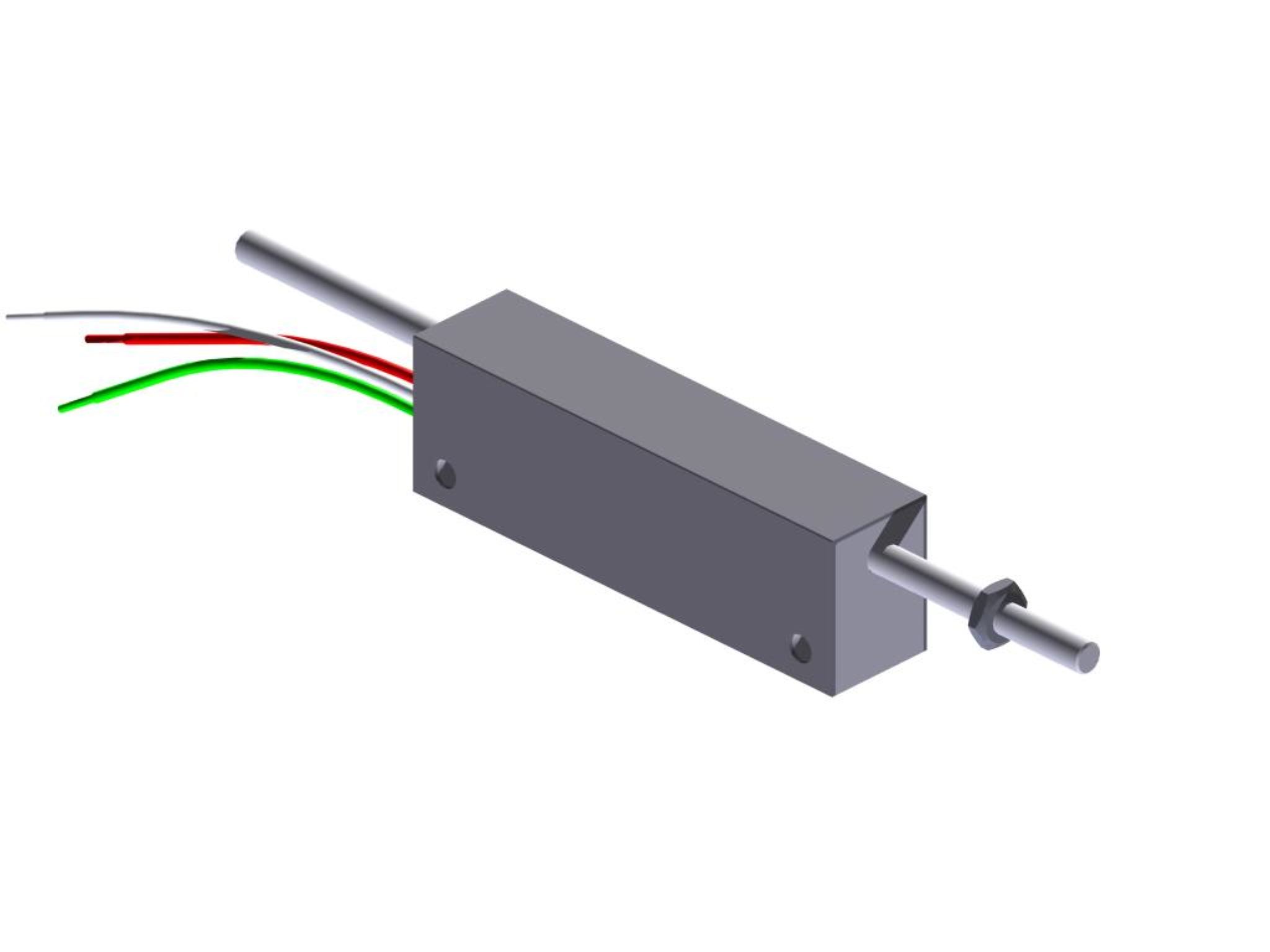

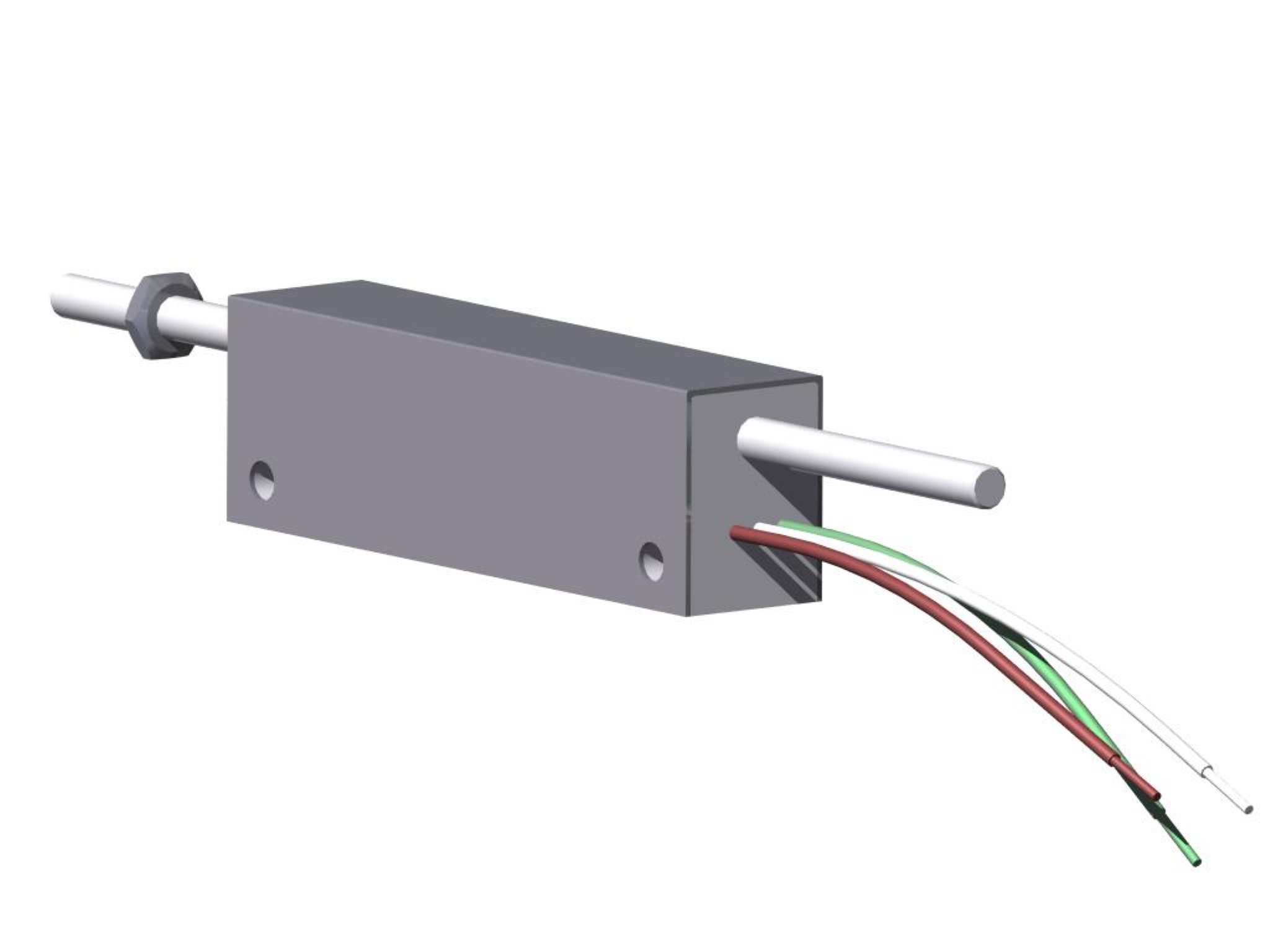

Linear transducer HP15, CP, 5kOhm, 25mm, compact
Linear transducer HP15, CP, 5kOhm, 25mm, compactLinear transducer HP15, CP, 5kOhm, 25mm, compact

Linear transducer HP15, CP, 5kOhm, 25mm, compact

Short description

Art-Nr:15-001
HP 15-001

General characteristics

Linear transducer basic type:HP 15

Mechanical characteristics

El. connection:Axial

Electrical characteristics

Operating voltage max:42 V DC

Electrical measuring range:15mm

Technology:Conductive plastic (CP)

Independent linearity:±0.5%

Resistance value:5 kΩ

Environmental characteristics

Protection class front side:IP40 correct mounted

Material

Enclosure:Leichtmetall, eloxiert, rostbeständiger Stahl
