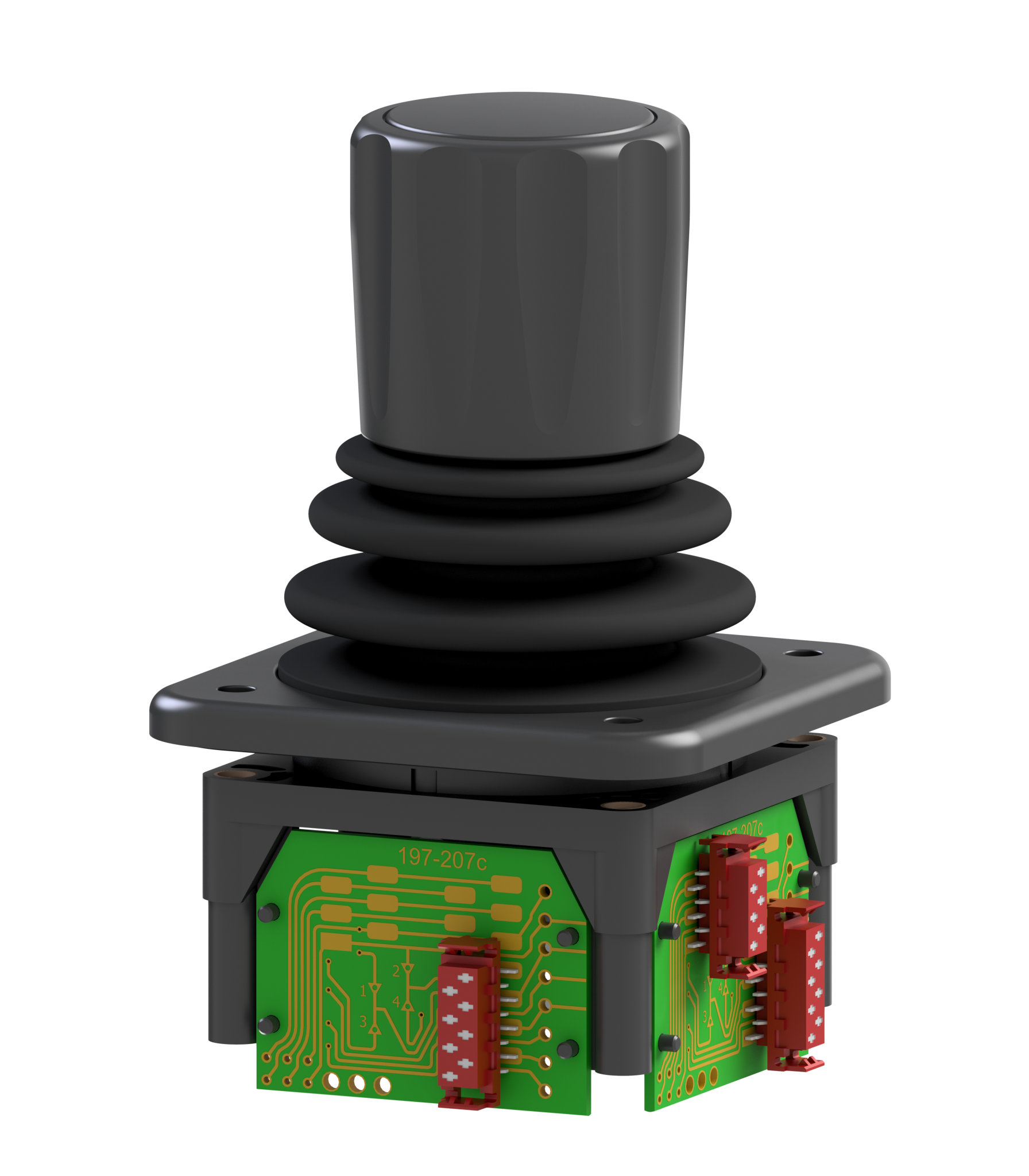

3-axis joystick for remote control with digital direction switch and conductive plastic
3-axis joystick for remote control with digital direction switch and conductive plastic

3 axes, CP, soft cross guidance, MicroMatch, remote control

Art-Nr:197-0122
SK 197-0122

This high-precision 3-axis joystick offers exceptional control for demanding applications. The lightweight cross-guide combines guided operation of the main axes with unrestricted deflection in all directions, enabling intuitive and precise maneuvering. Its robust construction guarantees a long service life and reliable function even under demanding conditions. The compact design makes this joystick ideal for use in radio remote controls, where space is often limited.

This 3-axis joystick is the perfect choice for applications requiring high accuracy and versatility, such as in industrial automation, robotics, or medical technology. With this joystick, you get a high-quality product that impresses with its precision, reliability, and ease of use.

General characteristics

Joystick base model:SK197 - For remote controls

Mechanical characteristics

Number of axes:3

Operating angle:±22°

Cross guidance:soft

Gate:square

Lebensdauer X/Y-Achse [Zyklen]:1 Mio.

Rotation angle:±45°

Electrical characteristics

Connector:Micro-MaTch

Center tap CP:±1.75°

Zero point detection α digital:±2°

Directional switch:1-1-1 (1 directional switch per half-axis)

Contact rating:Zero potentional difference between segments, 5V DC, 5mA

Interface:analog and digital

Sensor technology:Potentiometer CP with directional swith

Supply voltage:30V DC max.

Technology:Conductive plastic (CP)

Resistance tolerance:±20%

Resistance value:5 kΩ

Qualifications

Operating temperature:-30°C - +75°C

DC magnetic field immunity:passiv

Storage temperature:-40°C - +85°C

REACH compliant:Yes

RoHS compliant:Yes

Protection class front side:IP57 korrekt montiert

Handle

Handle model:Winter Twist

Special functions in handle:Rotatable

Material

Rubber boot:Rubber boot EPDM

Mounting

Mounting bolts:4xM3

Hole circle for mounting:Ø 41mm

Screw-hole pattern:Ø 53mm (~2.08in)

Mounting direction:from below

Dimensions

Outer diameter:53mm

Installation depth:31mm

Handle height above the panel:55mm
