Art-Nr:60-01369
SK 60-01369

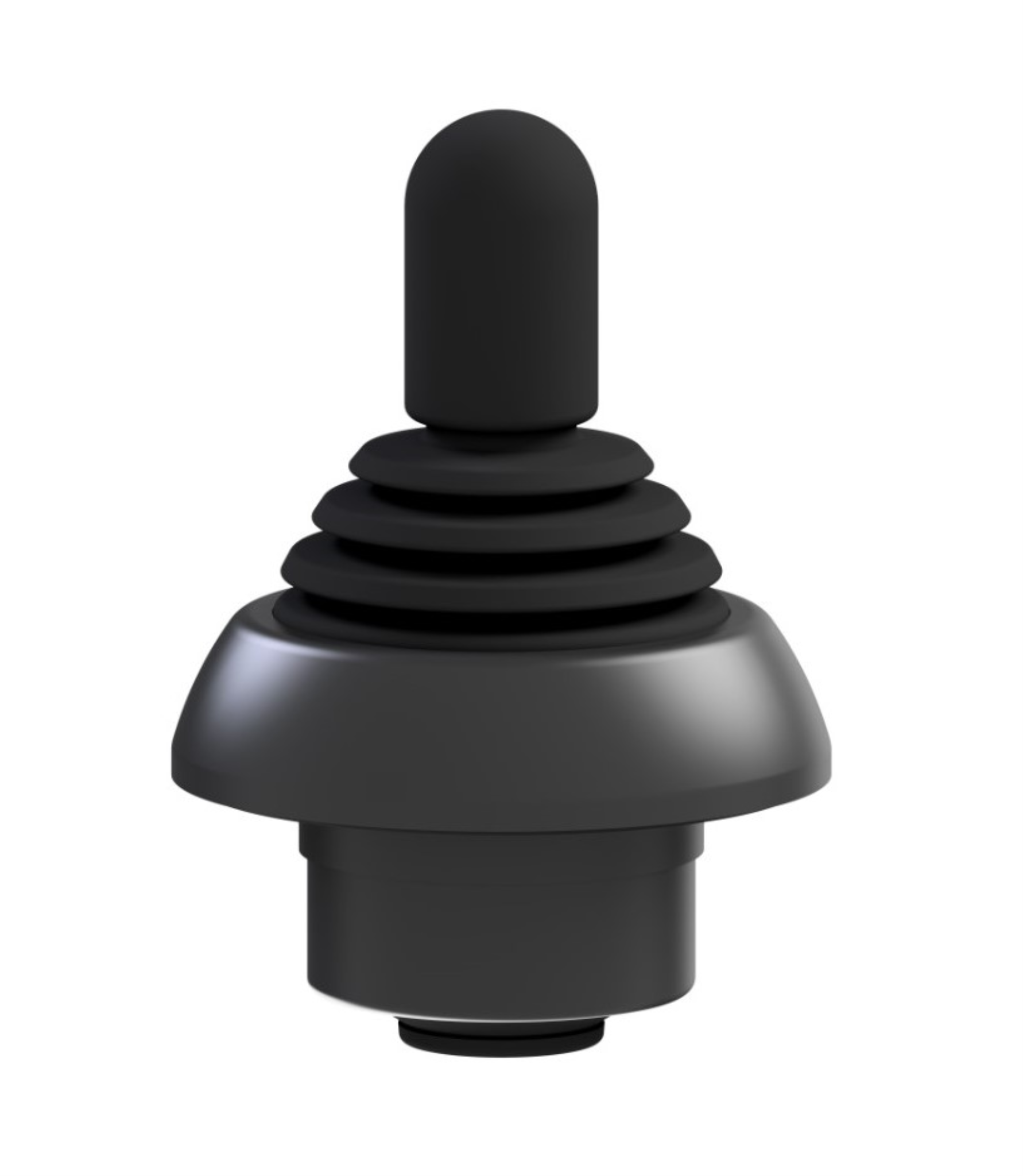

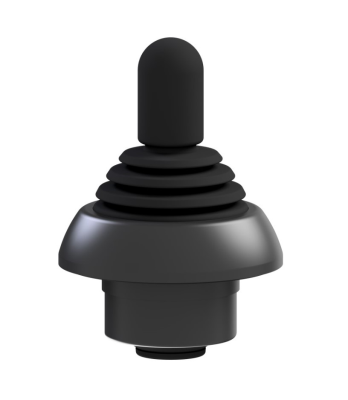

The 1-axis joystick with redundant Hall-effect sensors features a return function that automatically centers the joystick after release. The compact grip enables a high IP protection class, ensuring robust and durable operation. The mounting ring guarantees aesthetic integration and optimal sealing against environmental influences. The cable outlet uses a standardized Deutsch connector at the end, allowing for a simple and secure connection. Thanks to easy integration into existing and new systems, this joystick is suitable for nearly all application fields.

General characteristics

Joystick base model:New SK 60

Mechanical characteristics

Number of axes:1

Operating angle:±20°

Cross guidance:none

Gate:rectangular

Service life X/Y axis [cycles]:3 Mio.

Misuse torque X,Y axes:23Nm

Resetting:Integrated return spring

Electrical characteristics

Connector:Deutsch DTM04-4P

Output signal:0.5-4.5V DC

Redundancy:Dual/redundant output crosswise

Interface:analog

Sensor technology:Halleffekt Sensor

Supply voltage:5V DC

Qualifications

Operating temperature:-30°C - +80°C

Storage temperature:-40°C - +85°C

REACH compliant:Yes

RoHS compliant:Yes

Protection class front side:IP67 correct mounted

Handle

Handle model:Standard

Material

Rubber boot:Rubber boot EPDM

Mounting

Mounting bolts:4xM3

Hole circle for mounting:Ø 48mm

Screw-hole pattern:Ø 53mm (~2.08in)

Mounting direction:from top

Dimensions

Outer diameter:Ø 60mm (~2.36in)

Installation depth:34mm

Handle height above the panel:64mm (~2.52in)

Cable length:150mm
