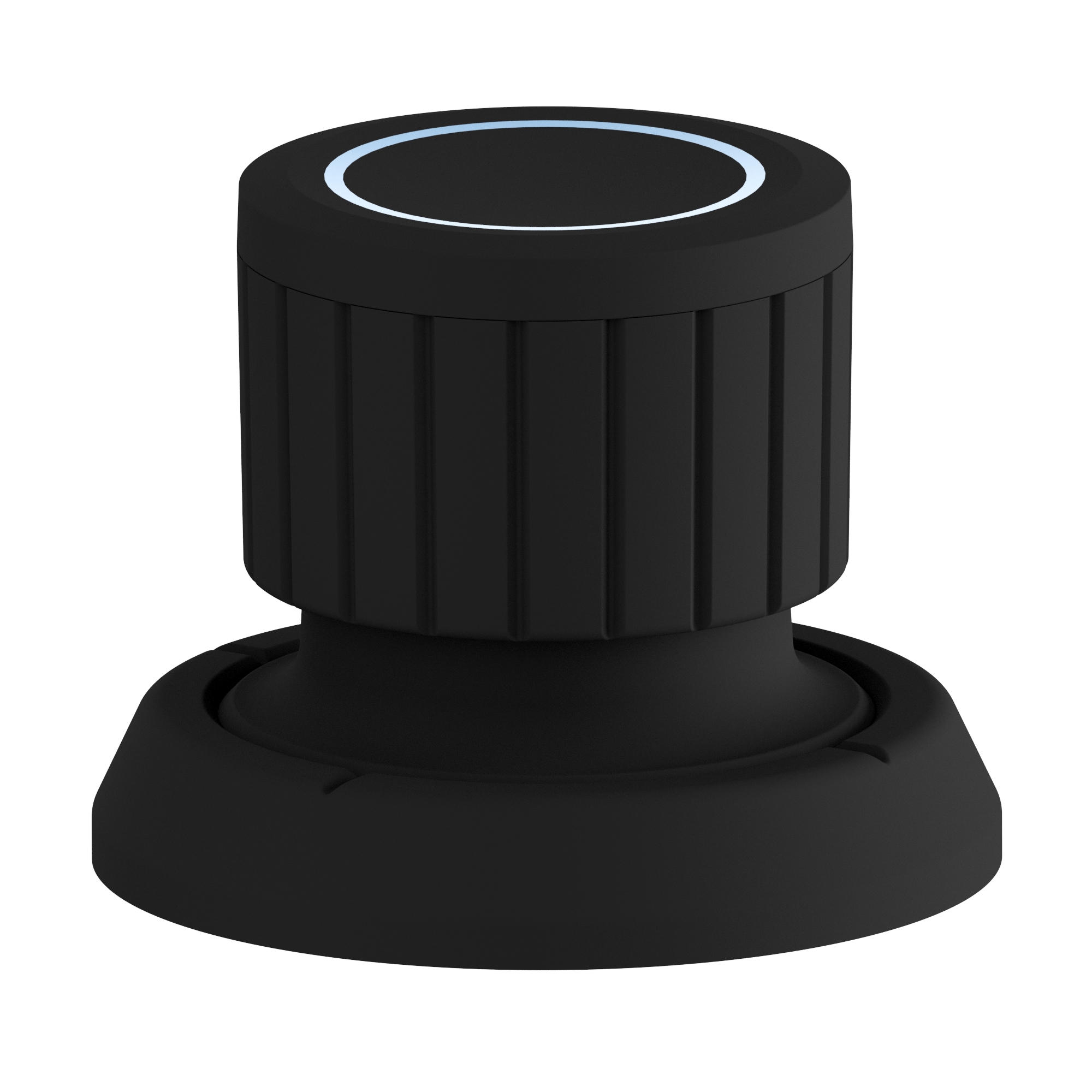

GT joysticks; system controller; system joystick with rotary function as well as stepless rotary handle and fixed handle
GT joysticks; system controller; system joystick with rotary function as well as stepless rotary handle and fixed handleSystem control joystick, stepless rotary handle, without push-button, without deflection, I2C

System control joystick, stepless rotary handle, without push-button, without deflection, I2C

Art-Nr:225-026
SK 225-026
The System Controller is the ideal solution for intuitive operation of media devices and screens. Its stepless rotary handle without mechanical stop enables precise and endless navigation, perfect for fine control of audio and video content. Without a push function and deflectable axes, it is optimized for pure rotary control. An aesthetic illuminated ring provides visual feedback. Thanks to its extremely flat design, it can be integrated into any new or existing system to save space.

General characteristics

Joystick base model:SK 225 - Controller

Mechanical characteristics

Number of axes:1

Gate:round

Rotationswinkel Z-Achse:360°, rotatable

Electrical characteristics

Illumination:LED - RGB

Interface:I²C

Sensor technology:Halleffekt Sensor

Supply voltage:3.3 - 5V DC

Connector:PicoBlade

Qualifications

Operating temperature:-30°C - +75°C

Storage temperature:-40°C - +85°C

REACH compliant:Yes

RoHS compliant:Yes

Protection class front side:IP67 correct mounted

Material

Rubber boot:Rubber boot EPDM

Mounting

Mounting bolts:4xM3

Hole circle for mounting:Ø 40mm (~1.57in)

Screw-hole pattern:Ø 53mm (~2.08in)

Mounting direction:from top with mounting ring

Dimensions

Outer diameter:Ø 40mm (~2.44in)

Installation depth:1mm

Handle height above the panel:48mm (~1.89in)
