2-axis joystick for remote control with digital direction switch and guide plastic
2-axis joystick for remote control with digital direction switch and guide plastic

2 axes, CP, soft cross guidance, Micro-MaTch

Art-Nr:197-0121
SK 197-0121

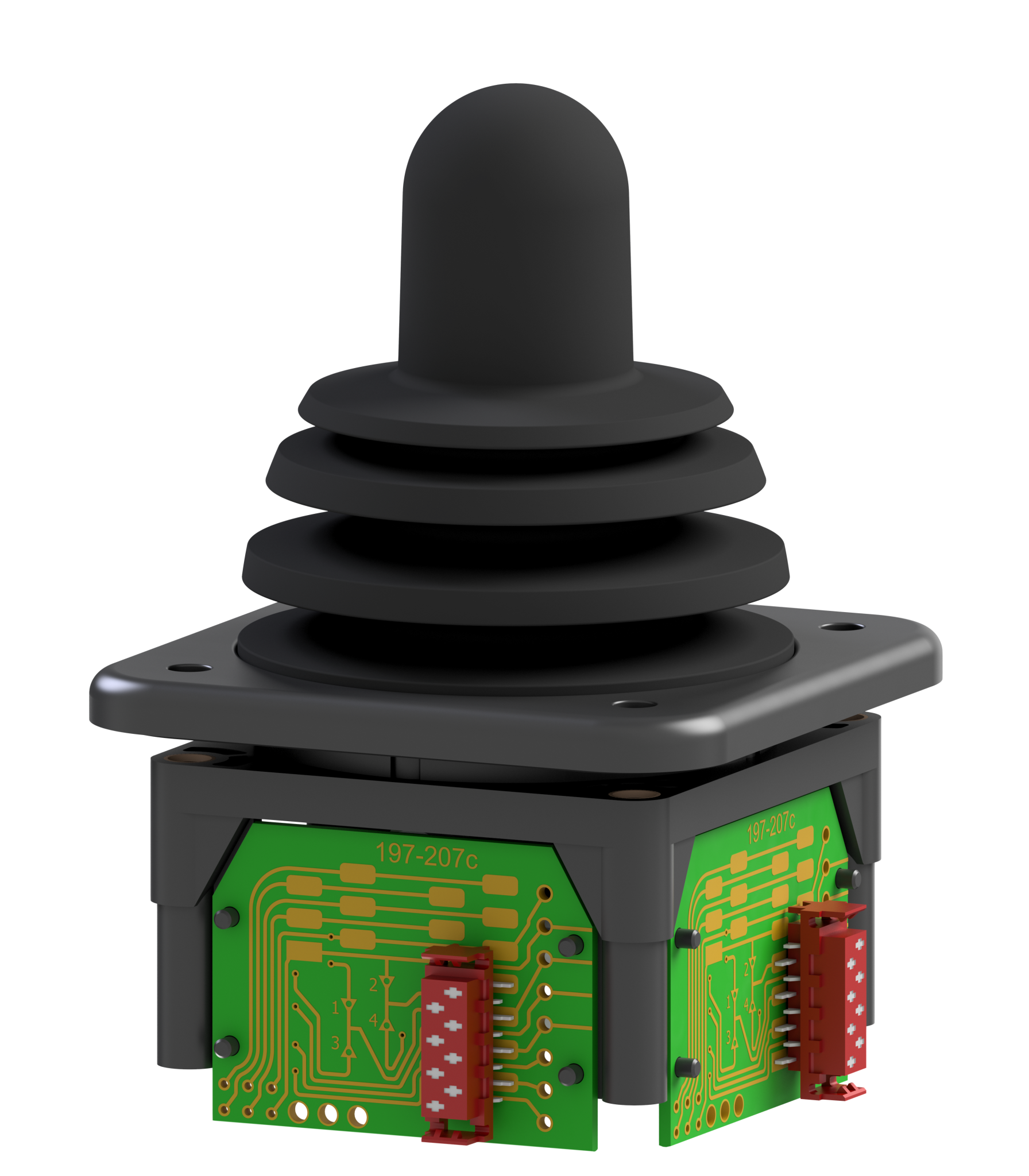

This high-precision 2-axis joystick is the ideal solution for demanding control applications where accuracy and reliability are paramount. The lightweight cross-guide combines guided operation on the main axes with full deflection in all directions. Thanks to its shallow installation depth, this joystick is ideal for use in radio remote controls. The compact design allows space-saving integration into your system without compromising performance. The robust construction ensures a long service life and reliable function even under demanding conditions. With this 2-axis joystick, you get a high-quality product that impresses with its precision, reliability, and compact design. It is suitable for applications such as radio remote controls for industrial applications and many more.

General characteristics

Joystick base model:SK197 - For remote controls

Mechanical characteristics

Number of axes:2

Operating angle:±26°

Cross guidance:soft

Gate:square

Lebensdauer X/Y-Achse [Zyklen]:3 Mio.

Electrical characteristics

Connector:Micro-MaTch

Center tap CP:±1.75°

Zero point detection α digital:±2°

Directional switch:1-1-1 (1 directional switch per half-axis)

Contact rating:Zero potentional difference between segments, 5V DC, 5mA

Interface:analog and digital

Sensor technology:Potentiometer CP with directional swith

Supply voltage:30V DC max.

Technology:Conductive plastic (CP)

Resistance tolerance:±20%

Resistance value:5 kΩ

Qualifications

Operating temperature:-30°C - +75°C

DC magnetic field immunity:passiv

Storage temperature:-40°C - +85°C

REACH compliant:Yes

RoHS compliant:Yes

Protection class front side:IP67 correct mounted

Handle

Handle model:Standard

Material

Rubber boot:Rubber boot EPDM

Mounting

Mounting bolts:4xM3

Hole circle for mounting:Ø 41mm

Screw-hole pattern:Ø 53mm (~2.08in)

Mounting direction:from below

Dimensions

Outer diameter:53mm

Installation depth:31mm

Handle height above the panel:48mm (~1.89in)
