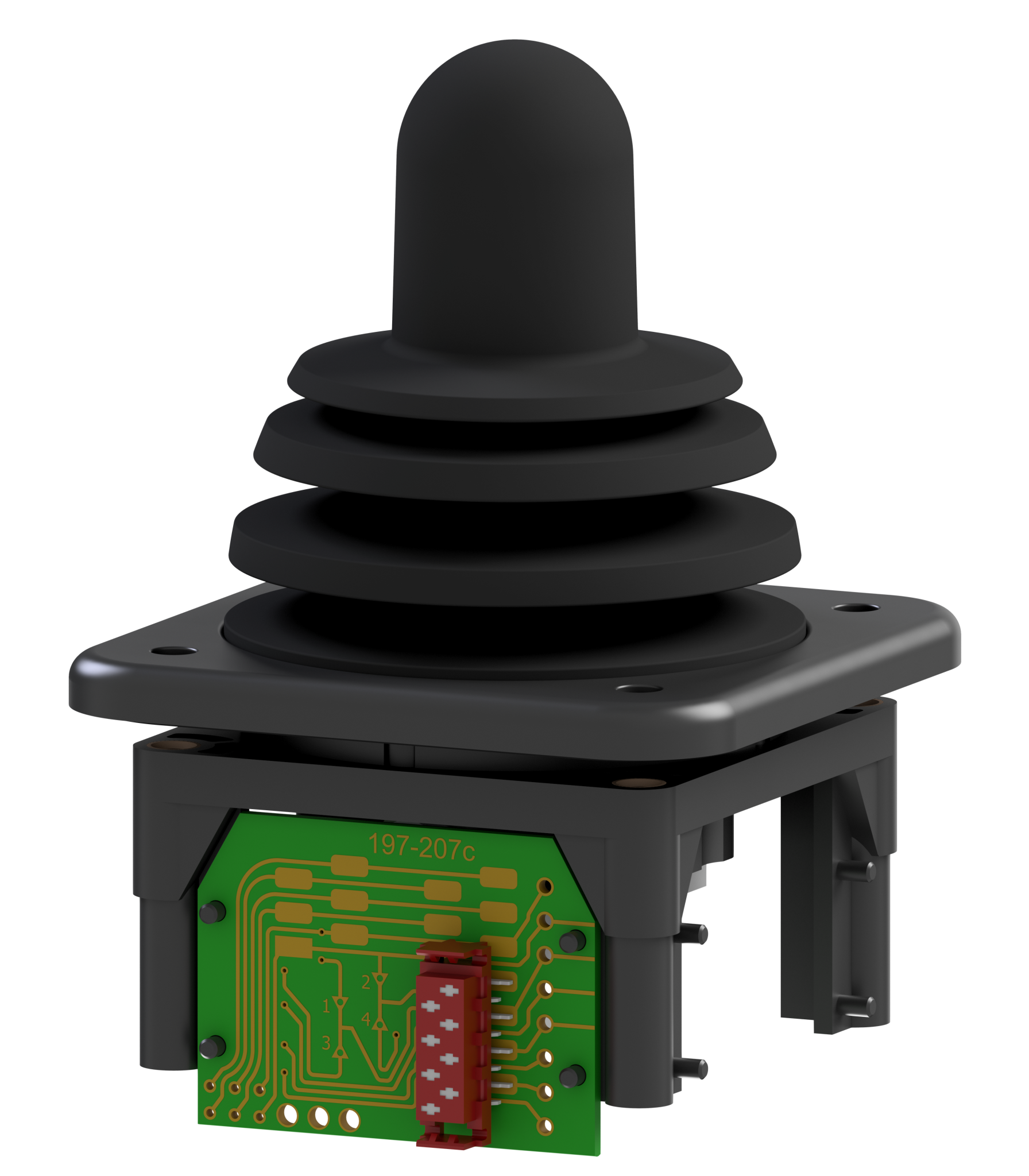

1-axle joystick for remote control with digital direction switch and conductive plastic
1-axle joystick for remote control with digital direction switch and conductive plastic

1 axe, CP, Micro-MaTch, remote control

Art-Nr:197-0120
SK 197-0120
This 1-axis joystick provides a straightforward and reliable solution for anyone needing simple, linear control. The robust construction ensures a long service life and reliable function, even under demanding conditions. Its compact design makes it ideal for use in radio remote controls, where space is often limited. This joystick is the perfect choice for applications where simplicity and reliability are paramount, without sacrificing precision. Whether in industry, model making, or other fields – this 1-axis joystick is a solid and cost-effective solution for your control needs.

General characteristics

Joystick base model:SK197 - For remote controls

Mechanical characteristics

Number of axes:1

Operating angle:±26°

Gate:rectangular

Lebensdauer X/Y-Achse [Zyklen]:3 Mio.

Electrical characteristics

Connector:Micro-MaTch

Center tap CP:±1.75°

Zero point detection α digital:±2°

Directional switch:1-1-1 (1 directional switch per half-axis)

Contact rating:Zero potentional difference between segments, 5V DC, 5mA

Interface:analog and digital

Sensor technology:Potentiometer CP with directional swith

Supply voltage:30V DC max.

Technology:Conductive plastic (CP)

Resistance tolerance:±20%

Resistance value:5 kΩ

Qualifications

Operating temperature:-30°C - +75°C

DC magnetic field immunity:passiv

Storage temperature:-40°C - +85°C

REACH compliant:Yes

RoHS compliant:Yes

Protection class front side:IP67 correct mounted

Handle

Handle model:Standard

Material

Rubber boot:Rubber boot EPDM

Mounting

Mounting bolts:4xM3

Hole circle for mounting:Ø 41mm

Screw-hole pattern:Ø 53mm (~2.08in)

Mounting direction:from below

Dimensions

Outer diameter:53mm

Installation depth:31mm

Handle height above the panel:48mm (~1.89in)
