GT joysticks; system controller; system joystick with turn and push function as well as stepless rotary handle and 3 axes
GT joysticks; system controller; system joystick with turn and push function as well as stepless rotary handle and 3 axesSystem control joystick, 3 axis, rotary handle stepless, push button, I2C

System control joystick, 3 axis, rotary handle stepless, push button, I2C

Art-Nr:225-023
SK 225-023

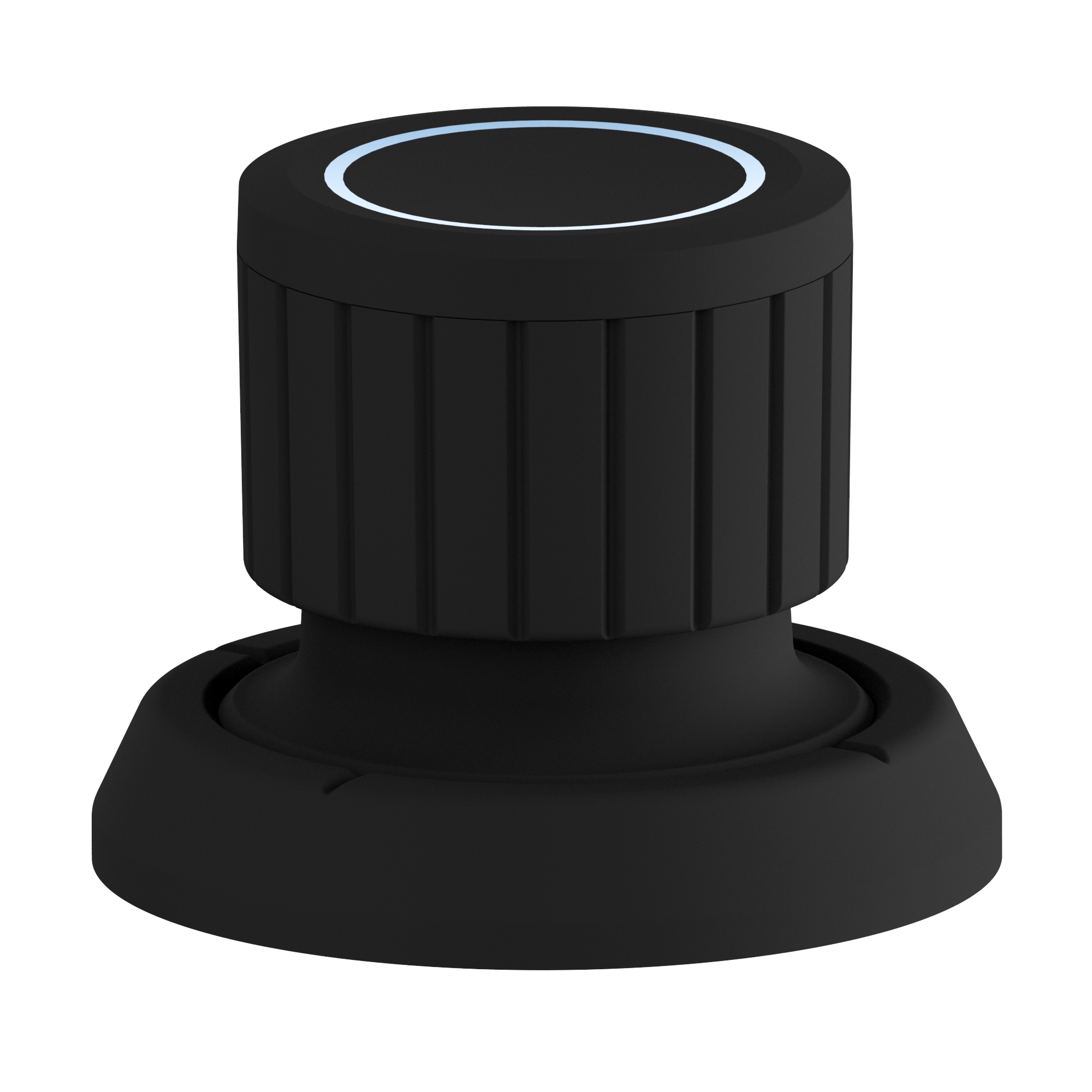

Experience a new dimension of control with our System Controller. With a push function and an infinitely rotatable handle without mechanical limitations, it is a compact product for operating your media devices and screens with its deflectable handle. An elegantly integrated illuminated ring gives you visual feedback, while the design with hardly any installation depth enables easy and space-saving integration into your existing and new systems.

General characteristics

Joystick base model:SK 225 - Controller

Mechanical characteristics

Number of axes:3

Operating angle:±9°

Cross guidance:none

Gate:round

Rotation angle:360°, rotatable

Electrical characteristics

Connector:PicoBlade

Illumination:LED - RGB

Interface:I²C

Sensor technology:Halleffekt Sensor

Supply voltage:3.3 - 5V DC

Qualifications

Operating temperature:-30°C - +75°C

Storage temperature:-40°C - +85°C

REACH compliant:Yes

RoHS compliant:Yes

Protection class front side:IP67 correct mounted

Handle

Extension:Taster (OFF - (Mom))

Handle model:Controller

Special functions in handle:Rotate and push

Push buttons in handle:1

Material

Rubber boot:Rubber boot EPDM

Mounting

Mounting bolts:4xM3

Hole circle for mounting:Ø 40mm (~1.57in)

Screw-hole pattern:Ø 53mm (~2.08in)

Mounting direction:from top with mounting ring

Dimensions

Outer diameter:Ø 40mm (~2.44in)

Installation depth:1mm

Handle height above the panel:48mm (~1.89in)
